Electric Actuated Plug Valve 2" 3" 1502 Union Connection 35-105MPa PSL3 PR1 for Water Steam Oil Explosion Proof

Name: Electric Actuated Plug Valve 2quot 3quot 1502 Union Connection 35105MPa PSL3 PR1 for Water Steam Oil Explosion Proof
Brand: GRAT
Price: 1 USD

China Electric Actuated Plug Valve 2" 3" 1502 Union Connection 35-105MPa PSL3 PR1 for Water Steam Oil Explosion Proof wholesale

Brand Name : GRAT

Model Number : EA-600-Ex

Certification : IP67,CCC, ISO, CE, TUV

Place of Origin : Wuhan, Hubei, China

MOQ : 1 pc

Price : USD $100.00-200.00/ Piece

Payment Terms : LC, T/T, D/P, PayPal, Western Union

Supply Ability : 1000PCS/Month

Delivery Time : 3 working days

Packaging Details : Carton/Wooden Box

Media : Water

Material : Stainless Steel

Connection Form : Wafer/Flange

Driving Mode : Electric

Nominal Pressure : PN1.0-32.0MPa

Channel : Straight Through Type

Type : Fixed Ball Valve

Temperature : Medium Temperature

Application : Industrial Usage, Water Industrial Usage

Output Signal : 4-20mA

Structure : Fixed Ball Valve

Function : Bypass-Valve

Standard : ASME

Size : Dn15~300

HS Code : 8481804090

Contact Now

Electric Actuated Plug Valve 2" 3" 1502 Union Connection 35-105MPa PSL3 PR1 for Water Steam Oil

PRODUCT DESCRIPTION:

Electric Actuated Plug Valve 2" 3" 1502 Union Connection 35-105MPa PSL3 PR1 for Water Steam Oil / Stainless Steel / High Pressure Plug Valve

Description:

The electric plug valve is a rotary valve driven by an electric actuator. It controls the on/off operation or regulates the flow rate by rotating the plug around its axis. With a compact structure, quick opening and closing, and excellent sealing performance, it is suitable for various media such as water, steam, and oil products. It is widely used in industrial systems such as petroleum, chemical, water supply, and drainage, enabling remote automated control with convenient operation and high reliability.

Features:

* Quick and Efficient Operation
* Low Flow Resistance Loss
* Excellent Sealing Performance
* Low Operating Torque
* Low Maintenance Cost

* High Control Precision

Specification:

Body size	DN15-DN250
Body ratings	PN1.6MPa
Body connections	Wafer, flange
Seat type	metal seal,Soft seal
Body material	SUS304 SUS316 WCB
Plug material	SUS304 SUS316 WCB
Action time	30S(0-90°)
Power supply	AC220V
Control signal	4~20mA 0~5V
Output signal	4~20mA 0~5V
Operating pressure	PN1.6Mpa PN2.5Mpa
Medium Temp	≤350ºC
Ambient Temp	≤50ºC
Flow coefficient	Custom flow coefficient depends on the customer's requirement
Applicable medium	mine pulp, coal pulp, paper pulp, water, oil, gas.
Dear zone	0.5%
Repeatability error	0.5%

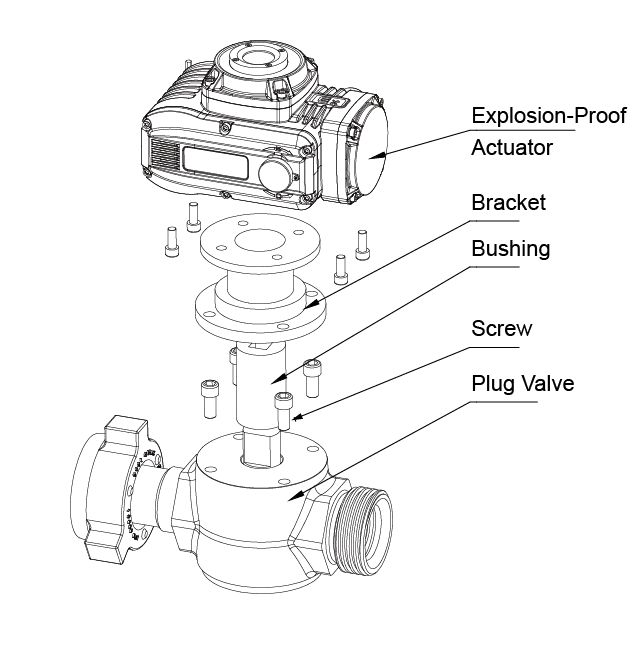

Exploded View

Control Diagram
Electric Actuated Plug Valve 2" 3" 1502 Union Connection 35-105MPa PSL3 PR1 for Water Steam Oil Explosion Proof

Model	Circuit	Model	Circuit
S	ON/OFF,no output signal	CPT	ON/OFF,output 4~20mA signal
MS	ON/OFF,output passive contact signal	PCU	Regulation,output 4~20mA signal
PIU	ON/OFF,output 0~1000Ω signal	G	ON/OFF,output passive contact signal
SP	ON/OFF,middle position control	H	ON/OFF,output passive contact signa

Packing & Shipping

1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
