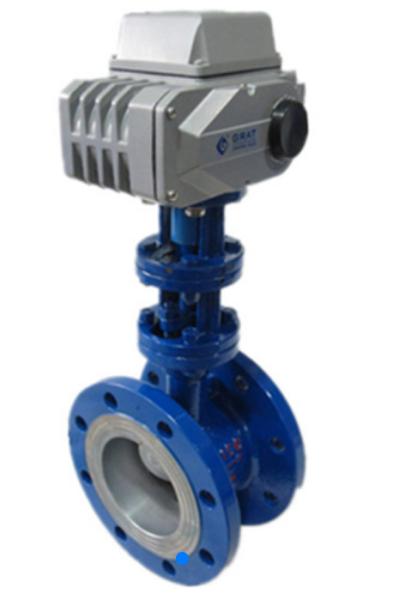

Triple Eccentric Electric Actuated Butterfly Valve Mid Pressure Auto Sealed

Name: Triple Eccentric Electric Actuated Butterfly Valve Mid Pressure Auto Sealed
Brand: GRAT
Price: 1 USD

China Triple Eccentric Electric Actuated Butterfly Valve Mid Pressure Auto Sealed wholesale

Brand Name : GRAT

Model Number : EB3-series

Place of Origin : Wuhan, Hubei, China

Certification : CCC, ISO, CE

MOQ : 1 pc

Packaging Details : Carton/Wooden Box

Delivery Time : 3 working days

Payment Terms : LC, T/T, D/P, PayPal, Western Union

Price : USD $350.00-1,000.00/ Piece

Certifications : IP68/CCC/ISO/CE

Media : Water

Driving Mode : Electric

Connection Form : Flange

Structure : Three-Eccentric Sealing

Seal Form : Auto Sealed

Valve Stem : Normal

Working Temperature : Medium Temperature (120°C

Valve Body : Casting

Application : Industrial Usage, Water Industrial Usage, Household Usage

Work Pressure : Mid-Pressure (2.5mpa< Pn <6.4mpa)

Material of Seal Surface : Metal Hard Sealed

Standard : GB/T 122387-89

HS Code : 8537109090

Contact Now

Triple Eccentric Electric Butterfly Valve

Product Description:

Triple Eccentric Electric Butterfly Valve

Description:

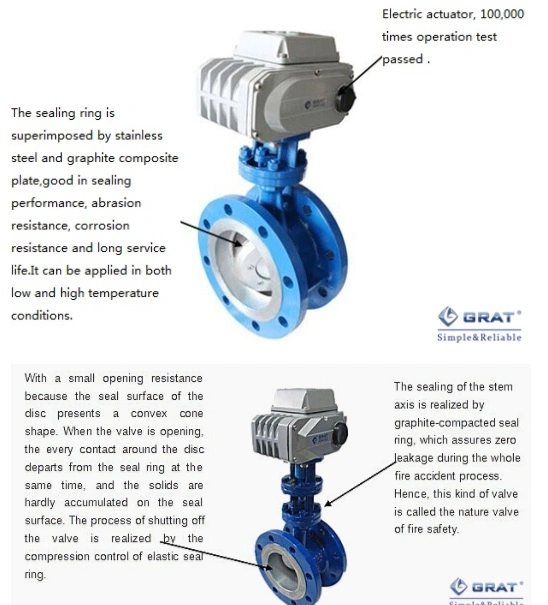

Triple Eccentric Electric Butterfly Valve is with the structure of tri-eccentric conical oblique cutting

which sets the center line of flange and the center line of the valve body at an Angle so that the

disc leave the sealing surface away from the valve seat sealing surface immediately when open

and in the closing moment will touch and press on the valve seat sealing surface.

The sealing ring is superimposed by stainless steel and graphite composite plate which can stand

the temp. up to 540℃.
It is a device to regulate and cut off the medium of those piping in petroleum chemical power metallurgy

and city heat supply system.

Specification:

Size (DN) DN50~DN1200

Power supply AC220V,AC380V,DC24V

Body rating(PN) PN6 / PN10 / PN16 / PN25 / PN40

Action mode Switch on-off / Regulation

Control signal 4-20mA / 0-5V~10V (Optional)

Output signal 4-20mA / 0-5V~10V (Optional)

Connection type Wafer / Flange

Seal type Metal seal

Test pressure Seal 0.66 1.1 1.76 2.2 2.75 4.4 5.5

Casing 0.9 1.5 2.4 3.0 3.75 6.0 7.5

Fluid temp. ≤540ºC

Suitable fluid Water Oil Gas and various of high temp. or slag inclusion fluid

Body material WCB,CF8 ,CF8M ,CF3M

Disc material WCB,CF8 ,CF8M ,CF3M

Seal material Stainless steel composite alloy

Stuffing Soft graphite

Protection class IP67

Manufacture standard GB/T 122381989 ,API609

Inspection and test standard GB/T 139271992 ,API598

Flange standard GB9115.88,GB9113.3~5-88,ASME B16.5CL.150,CL.300 and ASME B16.47CL.150

Wire Connection Diagram

Packing & Shipping:

1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
