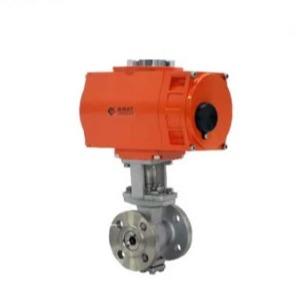

Exd II Bt4 Explosion-Proof Flanged Electric Ball Valve
Product Description:
Explosion-Proof Flanged Electric Ball Valve/Exd II Bt4
Description:
Flange type explosion-proof electric ball valve is the rotation Angle of 0-90° ball valve with excellent
sealing performance circulation capacity flow resistance coefficient is small simple structure
convenient maintenance long service life valve channel and connection pipe diameter and into a diameter
the medium can almost no loss of flow.
The control mode can be switch on-off type or regulation type. Its usually used in the occasions with strict
sealing requirements in addition to controlling gas liquid and steam medium it is also suitable for
controlling sewage and medium containing fibrous impurities widely used in petroleum chemical industry
metallurgy light industry paper making power station refrigeration and other work fields.
The working principle of flanged electric ball valve is: the electric actuator drives the valve stem to drive
a ball (or part of the ball) with a hole the ball rotates with the valve stem to realize the opening or closing
of the valve;Electric ball valve can be fully closed and fully opened by rotating 0-90°. Compared with gate
valve and globe valve of the same specification ball valve is small in size and light in weight which is
convenient for pipe installation.
| No leakage of two sides self-seal ball structure. |  | Special designed PTFE seal materialless the friction of the trim movement. |
| Excellent cuting ability of O type valve trim | Optional O type or Vtype valve trim
|
Features:
* All electrical and mechanical components are sealed in aluminum alloy shell with high instant explosion
resistance pressure of 1.6MPa isolating the ignition source effectively.
* With "o "ring seal up to protection grade IP68 Each explosion-proof surface adopts circular clearance
and CNC precision machining to achieve stable and reliable explosion-proof performance
* Powered by 1-phase 3-phase or DC power supplies
* Bus communication, Analog signal are available for your choice
* Permanently lubricated and maintenance free drive train
* Optional torque limiter/remote control
Explosion-proof grade:
TA: explosion-proof series products of explosion-proof level for Exd II BT4
The Ex
D: Explosion-proof type: Explosion-proof
II : Electrical equipment used in explosive gas environment except the coal mine of device
B: Explosion level: the size (width and clearance) of the explosion-proof surface in accordance with the explosion level
T4: Temperature group: the maximum temperature in surface is 135ºC
In appendix B of GB3836.1-2000 the grade and temperature of combustible gas are listed in detail
[NOTED] the types and groups of explosive media around the place where the product is used must be consistent with those permitted by the product.Otherwise it can't play the explosion-proof effect in non-applicable environment
