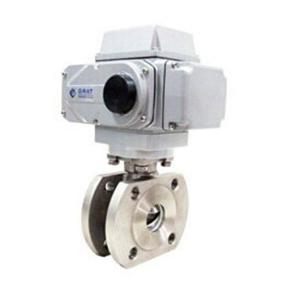

Quick Switch Electric Ball Valve

Name: Quick Switch Electric Ball Valve
Brand: GRAT
Price: 1 USD

China Quick Switch Electric Ball Valve wholesale

Brand Name : GRAT

Model Number : EDN15-200

Certification : CCC, ISO, CE

Place of Origin : Wuhan, Hubei, China

MOQ : 1 pc

Payment Terms : LC, T/T, D/P, PayPal, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 3 working days

Packaging Details : Carton/Wooden Box

Price : USD $170.00/ Piece

Certifications : IP67/CE/ISO/CNAS

Media : Water

Material : Stainless Steel

Connection Form : Flange

Driving Mode : Electric

Nominal Pressure : PN1.0-32.0MPa

Channel : Straight Through Type

Type : V Type Ball Valve

Temperature : Normal Temperature

Application : Industrial Usage, Water Industrial Usage

Valve Size : Dn15-200

Action Mode : Switch to Cut off

Body Material : Stainless Steel SUS304\SUS316\Carbon Steel/ Castin

Seal Type : Two-Sided Sphere Seal

Structure : Flexible Ball Valve

Function : Relief Valve

Standard : DIN

Power Supply : AC220V 50/60Hz

Operating Pressure : Pn16, Pn25, Pn40

Body Connections : Flange Type, Connecting Thread.

Leakage : Compliance with The Standards Ansib16.104 5

Applicable Medium : Water, Oil, Gas

HS Code : 8481804090

Contact Now

Quick Switch Electric Ball Valve

Product Description:

Quick Switch Electric Ball Valve/Flexible Ball Valve/Relief Valve

Description:

Quick-switch electric ball valves are widely used in various process pipelines with large pressure

differences, easy clogging and other complex situations that require quick switching and cutting,

fully covering the complex working conditions that solenoid valve products cannot meet.

Quick-switch electric ball valves fully meet the requirements for quick switching and cutting of process
parameters such as pressure, flow, temperature, and liquid level.

This product is widely used in various industrial fields. For example: industrial boilers, water supply,pipeline medium cutting, pipeline transportation, etc.

Specification:

Valve size	DN15~DN100
Power supply	AC220V,AC380V, DC24V
Temp.	≤220ºC
Ambient temp.	-30ºC-60ºC
Body rating	0.1~4.0MPa
Purpose	Quick open and close
Action time	4S/7S(optional)
Applicable medium	Water,Oil,Gas
End connection	Flange, thread
Seal type	two-sided sphere seal(zero leakage)
Test pressure	Body test	1.76MPa

	Seal test	2.4MPa

Body material	WCB,SUS304,SUS316
Seal ring material	EPDM,PTFE,PPL,metal seat
Protection level	IP67
Manufacturing standard	GB12237-89 AP16D
Flange standard	JB79 GB9113 ANSI B16.5 JIS B2212
Structure and length standard	GB1221-89
Inspection standards	JB/T 9092 API598

Installation Size

DN		L	D	K	D1	N-Md	B	I	H1	H2	W1	W2	Weight Kg
mm	inch	L	D	K	D1	N-Md	B	I	H1	H2	W1	W2	Weight Kg
15	1/2″	35	95	65	46	4-φM12	9	2	234	196	145	196	5.6
20	3/4″	38	100	75	56	4-φM12	12	2	242	196	145	196	6
25	1″	42	110	85	66	4-φM12	12.7	2	218	196	145	196	5.8
32	11/4″	52	133	100	78	4-φM16	14	3	231	196	145	196	6.7
40	11/2	61	145	110	87	4-φM16	15	3	238	196	145	196	7.6
50	2	73	160	125	99	4-φM16	16.7	3	251	196	145	196	8.7
65	21/2″	92	180	145	118	4-φM16	17.2	3	265	196	145	196	16.8
80	3″	109	195	160	136	8-φM16	19	3	298	255	184	255	18.6
100	4″	140	215	180	156	8-φM16	18.5	3	310	255	184	255	21.2

Connection diagram

Quick Switch Electric Ball Valve

Connection diagram

Quick Switch Electric Ball Valve

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
