25 Turns Circular Motion Explosion Proof Electric Actuator For Ball Valve Butterfly Valve

Name: 25 Turns Circular Motion Explosion Proof Electric Actuator For Ball Valve Butterfly Valve
Brand: GRAT
Price: 1 USD

China 25 Turns Circular Motion Explosion Proof Electric Actuator For Ball Valve Butterfly Valve wholesale

Brand Name : GRAT

Model Number : MA-series

Certification : IP68,CCC, ISO, CE,TUV

Place of Origin : Wuhan, Hubei, China

MOQ : 1 pc

Payment Terms : LC, T/T, D/P, PayPal, Western Union

Supply Ability : 10000 PCS/Month

Delivery Time : 3 working days

Packaging Details : Carton/Wooden Box

Price : USD $250.00-1000.00/ Piece

Certifications : CCC, ISO, CE, IAF, Cans

Power Supply : 220V AC

Power Source : Electric Power

Temperature : Ordinary Temperature

Connection : Standard/Stem Direct-Connected

Material : Aluminum Alloy Enclosure

Control Signal : Bus Communication, Analog Signal

Torque : 50n.M-200n.M

Warranty Period : One Year

Type : on/off, Regulating

Multi-Turns : 25 Turns

Suited Valve Type : Ball Valve, V Type, Butterfly, Ventilation Valve

Specification : <21KG

HS Code : 8481804090

Contact Now

25 Turns Circular Motion Explosion-Proof Electric Actuator for Ball Valve, Butterfly Valve Quarter-turn

Product Description:

25 Turns Circular Motion Explosion-Proof Electric Actuator/ IP68 / Multi-turn

Description:

Multi-turn explosion-proof series electric actuators is the latest innovation of light miniaturization explosion-proof actuators. Explosion-proof electric actuator product level Exd II BT4 protective IP68 machine shell with maximum 25 turns by 0-360° worm wheel .

The products are exquisite and unique in appearance, small in size, light in weight , stable and reliable in performance.It is the ideal choice for gate valve, ball valve, diaphragm valve, ventilation valve ,damper ,fan, dynamic balancing valve, plug valve, gyrating valve and mechanical positioning rotation system.

Features:

*All electrical and mechanical components are sealed in aluminum alloy shell with high instant explosion resistance pressure of 1.6MPa isolating the ignition source effectively.
*With "o "ring seal up to protection grade IP68, Each explosion-proof surface adopts circular clearance and CNC precision machining to achieve stable and reliable explosion-proof performance

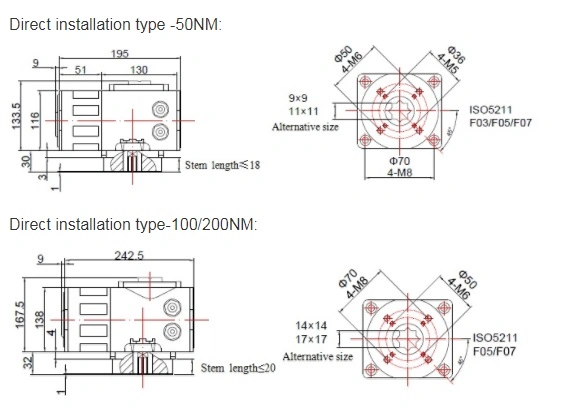

*Stem Direct-Connected type refer to IS05211

*Powered by 1-phase, 3-phase or DC power supplies
*Bus communication, Analog signal control are available for customization

*Permanently lubricated and maintenance free drive train

Specification:

Type	Exm05	Exm10	Exm20
Power supply	AC110/380	AC110/380	AC110/380
Motor power	25W	70W	140W
Rated current	2.12/0.10A	8.0/0.29A	1.75/0.48A
Standard Torque	50Nm 5r/min	100Nm 5r/min	200Nm 5.6r/min
Optional Torque	80Nm 5r/min	--	100Nm 11.2r/min
Turns	25 turns	25 turns	25 turns
Weight	8KG	13KG	25KG
Hystersis	< 0.3%
Dead band	0.4%~1.5% adjustable
Damping characteristics	0 times
Repeatability error	0%
Isolation resistance	100MΩ/500VDC
Anti-pressure level	1500VAC 1min
Protection level	IP68
Installation position	360°adjustable
Electrical connection	M20*1.5 explosion-proof cable connection, power wire, signal wire
Ambient Temp.	-30ºC~+60ºC
Optional accessories	Torque limiter / Remote control Dehumidifying heater / Passive contact switch

Wire Connnection diagram

25 Turns Circular Motion Explosion Proof Electric Actuator For Ball Valve Butterfly Valve

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
